Looking for a Fluidwell F012 or F110 Totalizer?
If you're searching for Fluidwell totalizers like the popular F012 or F110, you've come to the right place.
Why Buy Through Wagner Flow?
-
Same Fluidwell Quality - Identical units manufactured by Fluidwell in the Netherlands
-
Local Technical Support - We know turbine flow meters inside and out
-
Complete System Solutions - We match totalizers with meters, pickups, and cables
-
Fast Shipping - Most items ship same or next business day
- K-Factor Programming - We can pre-program your totalizer for your specific meter

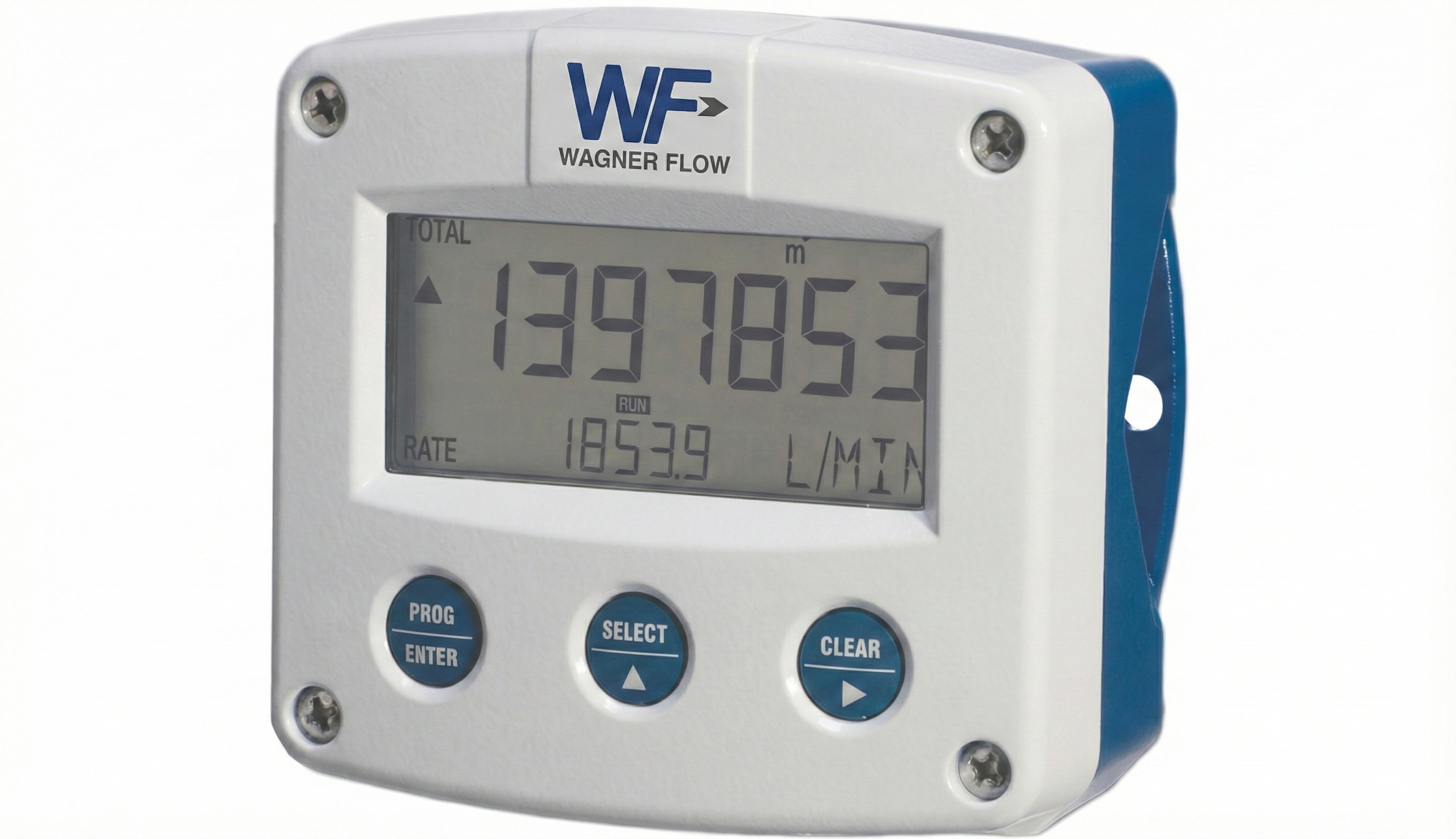

F012 / EDD-800 Key Specifications
The F012 (EDD-800) is Fluidwell's most popular model and our best-selling totalizer. Here's what makes it a go-to choice:
Display
- Flow rate: Seven 17mm (0.67") digits
- Resettable total: Seven 17mm digits
- Accumulated total (non-resettable): Eleven 8mm digits
Input Options
- Pulse: Reed-switch, NPN/PNP, NAMUR, sine wave (coil)
- Analog: 4-20mA input (F012-A variant)
- Max frequency: 500Hz
Output Options
- 4-20mA retransmit (scaled to any range)
- Scaled pulse output
- Relay alarms (high/low flow)
Enclosure
- Aluminum or 316L stainless steel
- IP65 / IP67 / NEMA 4X rated
- Operating temp: -40°F to +158°F (-40°C to +70°C)
Hazardous Area Options
-
F-Series (F012): Intrinsically Safe - ATEX, IECEx, FM, CSA
- E-Series (E018): Explosion Proof (Ex d) - for Class I Div 1 areas
Choosing Between Intrinsically Safe and Explosion Proof
This is one of the most common questions we get. Here's the quick guide:
| Classification | Fluidwell Series | Best For |
|---|---|---|
| Class I, Division 2 | F-Series (Intrinsically Safe) | Areas where hazardous gases are not normally present |
| Class I, Division 1 | E-Series (Explosion Proof) | Areas where hazardous gases may be present during normal operations |
Not sure which you need? Contact our team and we'll help you select the right unit for your application.
Programming Your Totalizer for Wagner Flow Meters
Every turbine meter has a specific K-factor (pulses per gallon). Here are the K-factors for our standard meter sizes:
| Meter Size | Pulses/Gallon | Flow Range (GPM) |
|---|---|---|
| 3/8" | 2,850 | 0.3 - 3 |
| 1/2" | 1,140 | 0.75 - 7.5 |
| 3/4" | 380 | 2 - 15 |
| 7/8" | 170 | 3 - 30 |
| 1" | 85 | 5 - 50 |
| 1-1/2" | 55 | 15 - 180 |
| 2" | 34 | 40 - 400 |
| 3" | 16.5 | 60 - 600 |
| 4" | 5 | 100 - 1200 |
When you order a totalizer with a meter, we can pre-program the K-factor so it's ready to install out of the box.
Ready to Order?
Browse our complete selection of Totalizers & Displays, or contact us for help selecting the right totalizer for your application.
Need explosion proof? Check out our Explosion Proof Electronics collection.
