Threaded Meter
5-0875R

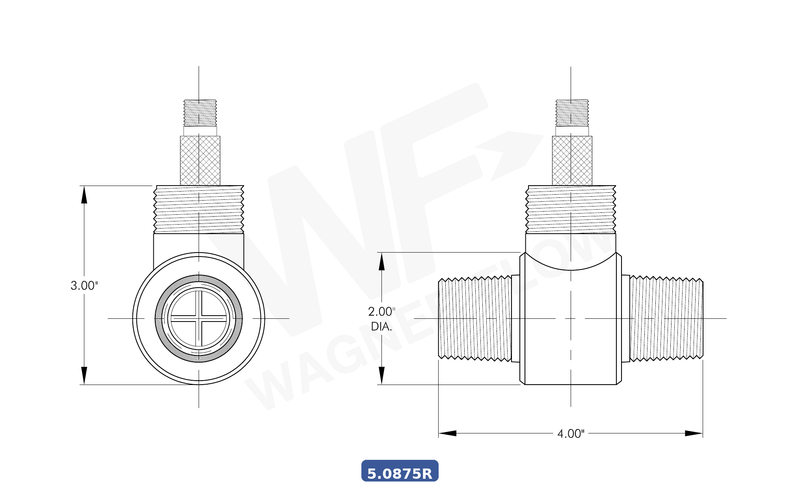

7/8" x 1" ROUND BODY THREADED METER
3-30 GPM
Flow Range
5000 PSI
Max Pressure
7/8"
Internal Size
Don't Forget!
Add a Magnetic Pickup
Required for all totalizer setups. The 4-303 is the recommended pickup for this meter.
View 4-303
$46.00
Specifications
3-30 GPM
Flow Range
5000 PSI
Max Pressure
±1%
Accuracy
±0.1%
Repeatability
7/8" NPT
Connection
316 SS
Body Material
Calibration Data
2,350
K-Factor (PPG)
1,175
Pulses per Sec
±0.1%
Linearity
-40°/250°F
Temp Range
Compatible Accessories
Applications
Oilfield Waterflood
Production Metering
Well Servicing
Pipeline Transfer
Mining Operations
Chemical Processing
