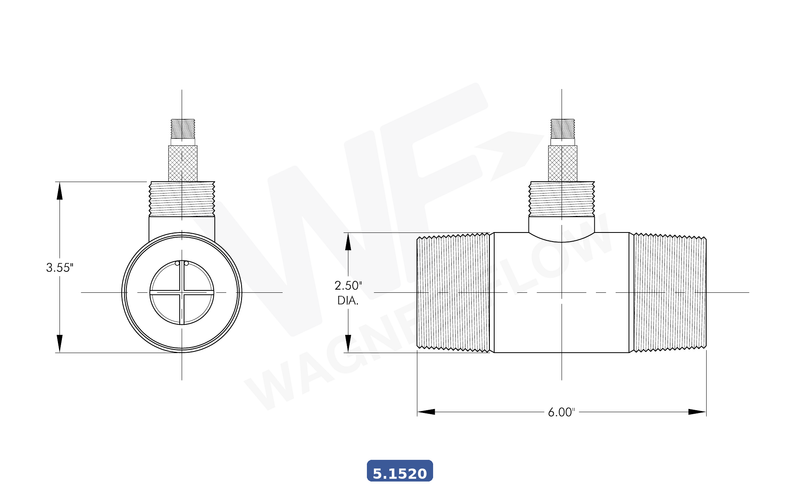

Threaded Meter
5-1520
1 1/2" x 2" THREADED METER
15-180 GPM
Flow Range
5000 PSI
Max Pressure
1-1/2"
Internal Size
Don't Forget!
Add a Magnetic Pickup
Required for all totalizer setups. The 4-303 is the recommended pickup for this meter.
View 4-303
$46.00
Specifications
15-180 GPM
Flow Range
5000 PSI
Max Pressure
±1%
Accuracy
±0.1%
Repeatability
1/2" NPT
Connection
316 SS
Body Material
Calibration Data
325
K-Factor (PPG)
975
Pulses per Sec
±0.1%
Linearity
-40°/250°F
Temp Range
Compatible Accessories
Applications
Oilfield Waterflood
Production Metering
Well Servicing
Pipeline Transfer
Mining Operations
Chemical Processing
