1502 Union Meter
5-21502

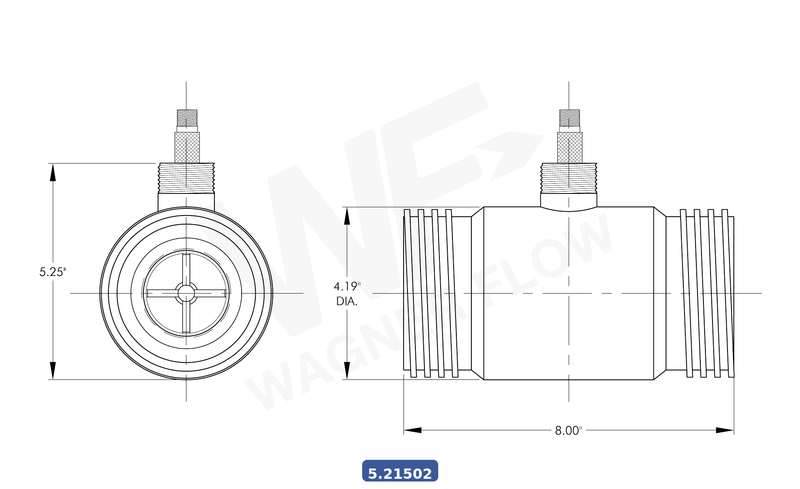

2" X 2" 1502 WECO UNION END FLOW METER
40-400 GPM
Flow Range
15000 PSI
Max Pressure
2"
Internal Size
Don't Forget!
Add a Magnetic Pickup
Required for all totalizer setups. The 4-303 is the recommended pickup for this meter.
View 4-303
$46.00
Specifications
40-400 GPM
Flow Range
15000 PSI
Max Pressure
±1%
Accuracy
±0.1%
Repeatability
2" NPT
Connection
316 SS
Body Material
Calibration Data
55
K-Factor (PPG)
365
Pulses per Sec
±0.1%
Linearity
-40°/250°F
Temp Range
Compatible Accessories
Applications
Oilfield Waterflood
Production Metering
Well Servicing
Pipeline Transfer
Mining Operations
Chemical Processing
