Threaded Meter
5-4000

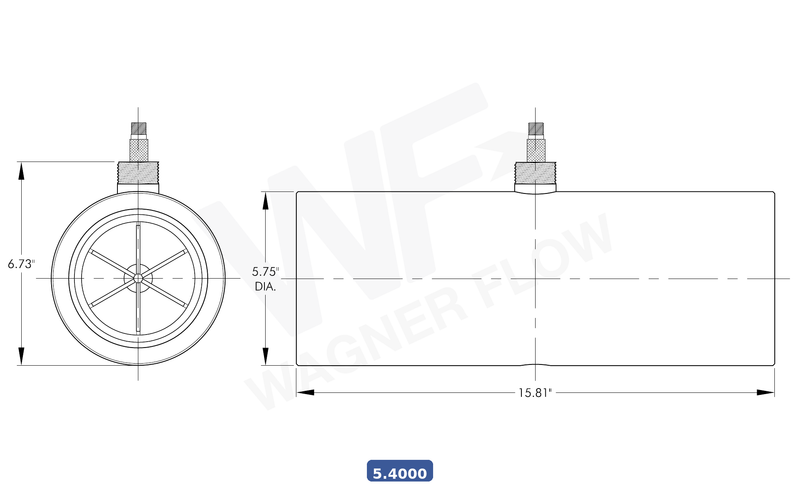

4" x 4" TURBINE FLOW METER WITH 4" FEMALE N.P.T. ENDS
100-1200 GPM
Flow Range
3000 PSI
Max Pressure
4"
Internal Size
Don't Forget!
Add a Magnetic Pickup
Required for all totalizer setups. The 4-303 is the recommended pickup for this meter.
View 4-303
$46.00
Specifications
100-1200 GPM
Flow Range
3000 PSI
Max Pressure
±1%
Accuracy
±0.1%
Repeatability
316 SS
Body Material
Calibration Data
30
K-Factor (PPG)
600
Pulses per Sec
±0.1%
Linearity
-40°/250°F
Temp Range
Compatible Accessories
Applications
Oilfield Waterflood
Production Metering
Well Servicing
Pipeline Transfer
Mining Operations
Chemical Processing
Questions About This Meter?
Our team is ready to help with sizing, specifications, and custom requirements.
