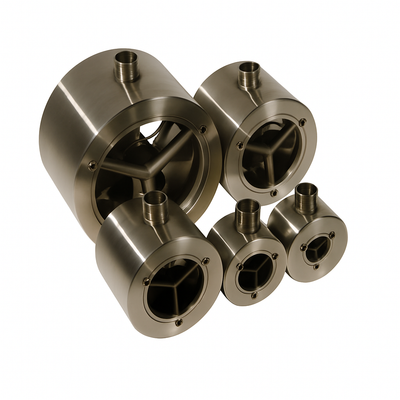

Between Flange Meters
Wagner Flow offers a complete line of BF series (between flange) turbine flow meters with flow ranges from 0.3 GPM to 5500 GPM, covering a wide variety of measurement applications. These meters are manufactured to the highest quality standards with versatile end connections for broad compatibility.
Typical applications include:
- Oilfield waterflood and production
- Well servicing
- Pipeline monitoring
- Mining and chemical processing
- Food and beverage production
- General industrial liquid measurement
BF series meters are available in multiple sizes and are compatible with 150# - 1500# RF ANSI flanges, with pressure ratings from 275 to 3600 psi.
Understanding Flange Pressure Ratings
Meter Size vs Flange Class
The meter size (2", 4", 6", etc.) indicates the internal pipe diameter the meter connects to. The flange class (150, 300, 600) determines the pressure rating and flange thickness—not the diameter. A 4" Class 150 and 4" Class 300 both fit 4" pipe, but the Class 300 handles higher pressures.
Pressure Ratings @ 100°F
| Class | PSI Rating |
|---|---|
| Class 150 | 285 PSI |
| Class 300 | 740 PSI |
| Class 600 | 1,480 PSI |
| Class 900 | 2,220 PSI |
| Class 1500 | 3,705 PSI |
Pressure ratings decrease at higher temperatures. Contact us for specific pressure-temperature requirements.
Standard Body (33)
| Product | Description | Meter Size | Connection | Pressure | Flow Rate | Repair Kit | Price | Buy |
|---|---|---|---|---|---|---|---|---|
| 6-1000 | 1"X 2" BETWEEN FLANGE TURBINE FLOW METER WITH RAISED FACE | 2" | 5-50 GPM | 6-100 | Request Quote | Get Quote | ||
| 6-6000 | 6" x 6" BETWEEN FLANGE FLOW METER WITH RAISED FACES | 6" | 200-2500 GPM | 6-650 | $3,284.00 | |||
| 6-4000 | 4" x 4" BETWEEN FLANGE TURBINE FLOW METER WITH RAISED FACES | 4" | 100-1200 GPM | 6-450 | $2,167.50 | |||
| 6-3000 | 3" x 3" BETWEEN FLANGE TURBINE FLOW METER WITH RAISED FACE ENDS | 3" | 60-600 GPM | 6-350 | $1,636.50 | |||
| 6-2000 | 2" 2" BETWEEN FLANGE TURBINE FLOW METER WITH RAISED FACE ENDS | 2" | 40-400 GPM | 6-250 | $811.00 | |||
| 6-1510 | 1.5" x 2" BETWEEN FLANGE TURBINE FLOW METER WITH RAISED FACE ENDS | 1-1/2" | 15-180 GPM | 6-150 | $744.50 | |||
| 6-450-GSKT | 4" BF METER REPAIR KIT WITH GASKETS | - | $1,162.50 | |||||
| 6-8000-6000 | 6" x 8" BETWEEN FLANGE METER | 6" | 8" | 1480 PSI | 200-2500 GPM | 5.650 | $57.01 | |
| 6-8000 | 8" x 8" BETWEEN FLANGE METER | 8" | 8" | 275 PSI | 350-3500 GPM | 5.850 | $4,934.25 | |
| 6-5000-4000 | 4" x 5" BETWEEN FLANGE METER | 4" | 5" | 275 PSI | 100-1200 GPM | 5.450 | $2,327.50 | |
| 6-3000HA | 3" x 3" BETWEEN FLANGE METER HIGH ACCURACY | 3" | 3" | 720 PSI | 60-600 GPM | 5.350 | $1,686.50 | |
| 6-2000HA | 2" x 2" BETWEEN FLANGE METER HIGH ACCURACY | 2" | 2" | 275 PSI | 40-400 GPM | 5.250 | $813.50 | |
| 6-1515 | 1 1/2" x 1 1/2" BETWEEN FLANGE METER | 1-1/2" | 1-1/2" | 275 PSI | 15-180 GPM | 5.150 | $772.00 | |
| 6-1500-2 | 1 1/2" x 2" BETWEEN FLANGE METER W/ 2 HUBS | 1-1/2" | 2" | 2500 PSI 6,170 PSI | 15-180 GPM | 5.150 | $752.50 | |
| 6-0870 .5 PER | 7/8" x 2" BETWEEN FLANGE METER .5 % | 7/8" | 2" | 275 PSI | 3-30 GPM | 5.087 | $952.00 | |
| 6-0370 | 3/8" x 2" BETWEEN FLANGE METER | 3/8" | 2" | 275 PSI | 0.3-3 GPM | 5.037 | $764.00 | |
| 5-0750BF4R | 3/4" x 1" x 4" ROUND BODY BETWEEN FLANGE METER | 3/4" | 1" | 275 PSI | 2-15 GPM | 5.075 | $517.50 | |
| 5-0500BF4R | 1/2"x 1" x 4" ROUND BODY BETWEEN FLANGE METER | 1/2" | 1" | 275 PSI | 0.75-7.5 GPM | 5.050 | $531.50 | |
| 5-0375BF4R | 3/8" x 1" x 4" ROUND BODY BETWEEN FLANGE METER | 3/8" | 1" | 275 PSI | 0.3-3 GPM | 5.037 | $564.50 | |
| 6-4000-3000BF | 3 X 4" BF TURBINE FLOW METER | 3" | - | $2,889.00 | ||||
| 6-3000-2000 | 2" X 3" BETWEEN FLANGE METER | 2" | 720 PSI | 40-400 GPM | 5.250 | $1,936.50 | ||
| 6-3000-1500 | 1 1/2" x 3" BETWEEN FLANGE METER | 1-1/2" | 1/2" | 2500 PSI 6,170 PSI | 0.75-7.5 GPM | 5.050 | $1,888.00 | |
| 6-1500 | 1 1/2" x 2" BETWEEN FLANGE METER | 1-1/2" | 1/2" | As Per Flange Rating | 0.75-7.5 GPM | 5.050 | $788.50 | |
| 6-1001 | 1" x 2" BETWEEN FLANGE METER | 1" | As Per Flange Rating | 5-50 GPM | 5.100 | $744.50 | ||
| 6-0870 | 7/8" x 2" BETWEEN FLANGE METER | 7/8" | As Per Flange Rating | 3-30 GPM | 5.087 | $757.50 | ||
| 6-0750 | 3/4" x 2" BETWEEN FLANGE METER | 3/4" | As Per Flange Rating | 2-15 GPM | 5.075 | $751.00 | ||
| 6-0500 | 1/2" x 2" BETWEEN FLANGE METER | 1/2" | As Per Flange Rating | 0.75-7.5 GPM | 5.050 | $751.00 | ||
| 5-1001BF4R | 1" x 1" x 4" ROUND BODY BETWEEN FLANGE METER | 1" | 275 PSI | 5-50 GPM | 5.100 | $522.50 | ||
| 5-1001BF4-NPK | 1" X 1" X 4" BETWEEN FLANGE TURBINE METER W/ NICKEL PLATED KIT.. | 1" | 275 PSI | 5-50 GPM | 5.100 | $445.00 | ||
| 5-1001BF4-3-NPK | 1" x 1" x 4" ROUND BODY BETWEEN FLANGE METER W/ 3 BLADE ROTOR AND... | 1" | 1" | 275 PSI | 5-50 GPM | 5.100 | $378.00 | |
| 5-0875BF4R | 7/8" x 1" x 4" ROUND BODY BETWEEN FLANGE METER | 7/8" | 7/8" | 275 PSI | 3-30 GPM | 5.087 | $530.00 | |
| 5-0750BF4-NPK | 3/4" X 1" X 4" BETWEEN FLANGED TURBINE FLOW METER WITH NICKEL PLATED KIT | 3/4" | 3/4" | 275 PSI | 2-15 GPM | 5.075 | $473.50 | |
| 6-3000-1500BF | 1.5" X 3" BF TURBINE FLOW METER | 1-1/2" | 1/2" | 2500 PSI 6,170 PSI | 15-180 GPM | 5.150 | $1,888.00 |
Hex Body (5)
| Product | Description | Meter Size | Connection | Pressure | Flow Rate | Repair Kit | Price | Buy |
|---|---|---|---|---|---|---|---|---|
| 5-1001BF4H | 1" x 1" x 4" HEX BODY BETWEEN FLANGE METER | 1" | 1" | 275 PSI | 5-50 GPM | 5.100 | $491.50 | |
| 5-0875BF4H | 7/8" x 1" x 4" HEX BODY BETWEEN FLANGE METER | 7/8" | 1" | 275 PSI | 3-30 GPM | 5.087 | $530.00 | |
| 5-0500BF4H | 1/2" x 1" x 4" HEX BODY BETWEEN FLANGE METER | 1/2" | 1" | 275 PSI | 0.75-7.5 GPM | 5.050 | $501.50 | |
| 5-0375BF4H | 3/8" x 1" x 4" HEX BODY BETWEEN FLANGE METER | 3/8" | 1" | 275 PSI | 0.3-3 GPM | 5.037 | $564.50 | |
| 5-0750BF4H | 3/4" x 1" x 4" HEX BODY BETWEEN FLANGE METER | 3/4" | 275 PSI | 2-15 GPM | 5.075 | $577.50 |
