Between Flange Meter
6-6000

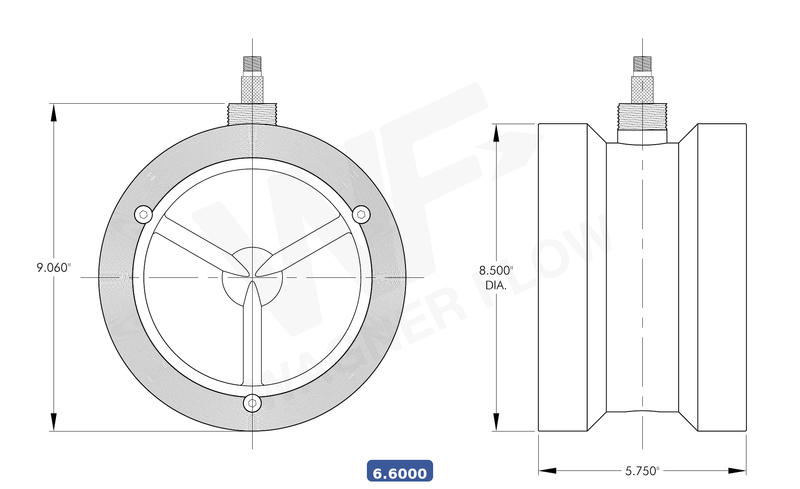

6" x 6" BETWEEN FLANGE FLOW METER WITH RAISED FACES
200-2500 GPM
Flow Range
6"
Internal Size
Don't Forget!
Add a Magnetic Pickup
Required for all totalizer setups. The 4-303 is the recommended pickup for this meter.
View 4-303
$46.00
Specifications
200-2500 GPM
Flow Range
±1%
Accuracy
±0.1%
Repeatability
316 SS
Body Material
Calibration Data
7
K-Factor (PPG)
290
Pulses per Sec
±0.1%
Linearity
-40°/250°F
Temp Range
Compatible Accessories
Applications
Oilfield Waterflood
Production Metering
Well Servicing
Pipeline Transfer
Mining Operations
Chemical Processing
