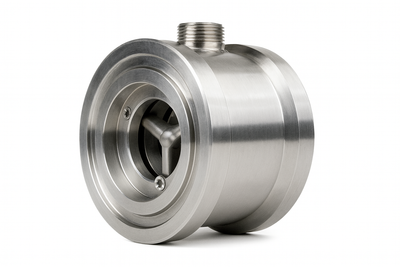

Between Flange Ring Joint Meters
Wagner Flow offers a line of ring joint turbine flow meters with flow ranges from 2 GPM to 400 GPM, covering a wide variety of measurement applications. These meters are manufactured to the highest quality standards.
Typical applications include:
- Oilfield waterflood and production
- Well servicing
- Pipeline monitoring
- Mining and chemical processing
- Food and beverage production
- General industrial liquid measurement
Available sizes: 3/4", 1", 1-1/2", and 2" Available in 1500 series or 2500 series ring joints. Operating pressure is determined by the gasket rating.
Understanding Flange Pressure Ratings
Meter Size vs Flange Class
The meter size (2", 4", 6", etc.) indicates the internal pipe diameter the meter connects to. The flange class (150, 300, 600) determines the pressure rating and flange thickness—not the diameter. A 4" Class 150 and 4" Class 300 both fit 4" pipe, but the Class 300 handles higher pressures.
Pressure Ratings @ 100°F
| Class | PSI Rating |
|---|---|
| Class 150 | 285 PSI |
| Class 300 | 740 PSI |
| Class 600 | 1,480 PSI |
| Class 900 | 2,220 PSI |
| Class 1500 | 3,705 PSI |
Pressure ratings decrease at higher temperatures. Contact us for specific pressure-temperature requirements.
| Product | Description | Meter Size | Connection | Pressure | Flow Rate | Repair Kit | Price | Buy |
|---|---|---|---|---|---|---|---|---|
| 6-1500-1500-RJ | 1.5" x 2" RING JOINT FLOW METER | 1-1/2" | 1500 PSI 3,705 PSI | 15-180 GPM | 6-150 | Request Quote | Get Quote | |
| 6-1001-2500-RJ | 1"x 2" RING JOINT FLOW METER | 2" | 2500 PSI 6,170 PSI | 5-50 GPM | 6-100 | Request Quote | Get Quote | |
| 6-1001-1500-RJ | 1"x 2" RING JOINT FLOW METER | 2" | 1500 PSI 3,705 PSI | 5-50 GPM | 6-100 | Request Quote | Get Quote | |
| 6-1000-2500-RJ | 1"x 2" RING JOINT FLOW METER | 2" | 2500 PSI 6,170 PSI | 5-50 GPM | 6-100 | Request Quote | Get Quote | |
| 6-1000-1500-RJ | 1"x 2" RING JOINT FLOW METER | 2" | 1500 PSI 3,705 PSI | 5-50 GPM | 6-100 | Request Quote | Get Quote | |
| 6-0750-2500-RJ | 3/4" x 2" RING JOINT FLOW METER | 3/4" | 2500 PSI 6,170 PSI | 2-15 GPM | 6-075 | Request Quote | Get Quote | |
| 6-0750-1500-RJ | 3/4" x 2" RING JOINT FLOW METER | 3/4" | 1500 PSI 3,705 PSI | 2-15 GPM | 6-075 | Request Quote | Get Quote | |
| 6-3000-2000-2500RJ | 2" X 3" CLASS 2500 BETWEEN FLANGE RING JOINT METER | 2" | 2" | 720 PSI | 40-400 GPM | 5.250 | $2,717.00 | |
| 6-1500-2500RJ | 1 1/2" x 2" BETWEEN FLANGE CLASS 2500 RING JOINT METER | 1-1/2" | 1/2" | 2500 PSI 6,170 PSI | 15-180 GPM | 5.150 | $2,393.00 | |
| 6-1500-1500RJ | 1.5" x 2" BETWEEN FLANGE CLASS 1500 RING JOINT METER | 1-1/2" | 5" | Class 1500 3,705 PSI | 15-180 GPM | 5.150 | $2,393.00 |
