1502 Union Meter
3-10000-150

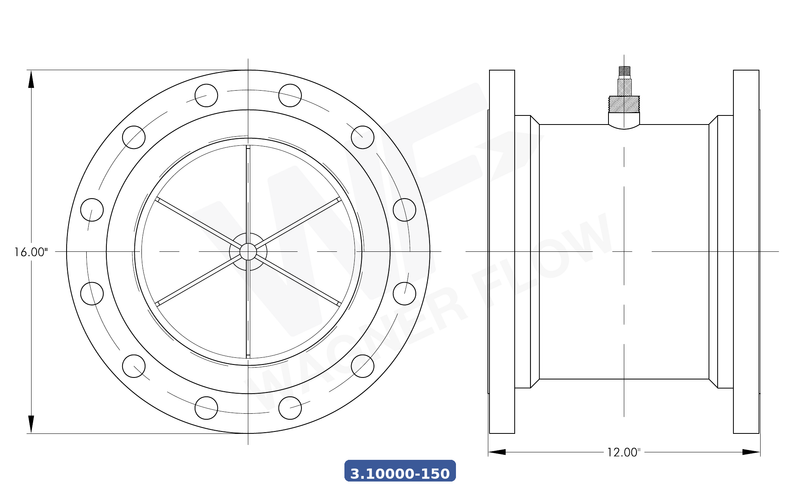

10" x 10" TURBINE FLOW METER WITH 150 SERIES FLANGES
550-5500 GPM
Flow Range
275 PSI
Max Pressure
10"
Internal Size
Don't Forget!
Add a Magnetic Pickup
Required for all totalizer setups. The 4-303 is the recommended pickup for this meter.
View 4-303
$46.00
Specifications
550-5500 GPM
Flow Range
275 PSI
Max Pressure
±1%
Accuracy
±0.1%
Repeatability
316 SS
Body Material
Calibration Data
1.6
K-Factor (PPG)
147
Pulses per Sec
±0.1%
Linearity
-40°/250°F
Temp Range
Compatible Accessories
Applications
Oilfield Waterflood
Production Metering
Well Servicing
Pipeline Transfer
Mining Operations
Chemical Processing
