Flanged Meter
3-2000-150CS

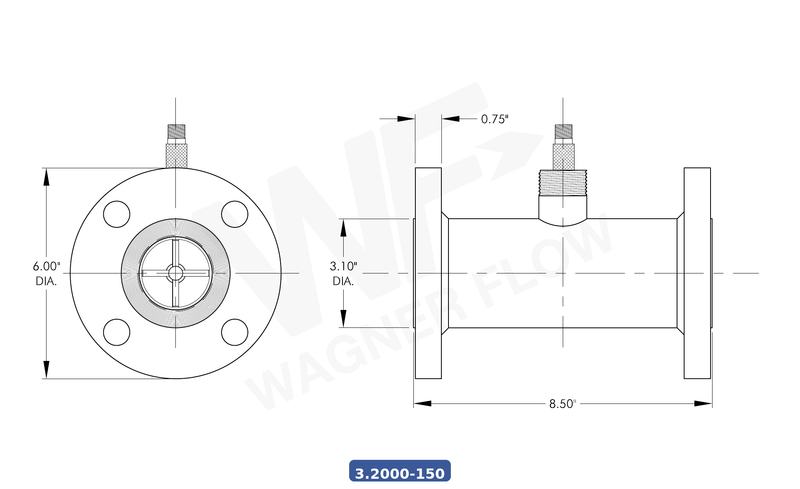

2" x 2" FLANGED METER W/ CLASS 150 CARBON STEEL FLANGES
40-400 GPM
Flow Range
Class 150
Max Pressure
2"
Internal Size
Don't Forget!
Add a Magnetic Pickup
Required for all totalizer setups. The 4-303 is the recommended pickup for this meter.
View 4-303
$46.00
Specifications
40-400 GPM
Flow Range
Class 150
Max Pressure
±1%
Accuracy
±0.1%
Repeatability
2" NPT
Connection
316 SS
Body Material
Calibration Data
55
K-Factor (PPG)
365
Pulses per Sec
±0.1%
Linearity
-40°/250°F
Temp Range
Compatible Accessories
Applications
Oilfield Waterflood
Production Metering
Well Servicing
Pipeline Transfer
Mining Operations
Chemical Processing
Questions About This Meter?
Our team is ready to help with sizing, specifications, and custom requirements.
