Flanged Meter
3-3000-150SS316

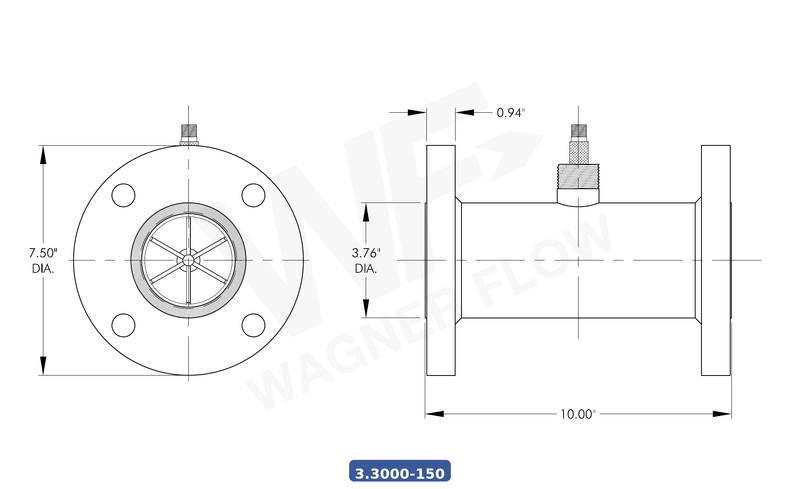

3" x 3" FLANGED METER W/ CLASS 150 STAINLESS STEEL FLANGES
60-600 GPM
Flow Range
Class 150
Max Pressure
3"
Internal Size
Don't Forget!
Add a Magnetic Pickup
Required for all totalizer setups. The 4-303 is the recommended pickup for this meter.
View 4-303
$46.00
Specifications
60-600 GPM
Flow Range
Class 150
Max Pressure
±1%
Accuracy
±0.1%
Repeatability
3" NPT
Connection
316 SS
Body Material
Calibration Data
57
K-Factor (PPG)
570
Pulses per Sec
±0.1%
Linearity
-40°/250°F
Temp Range
Compatible Accessories
Applications
Oilfield Waterflood
Production Metering
Well Servicing
Pipeline Transfer
Mining Operations
Chemical Processing
