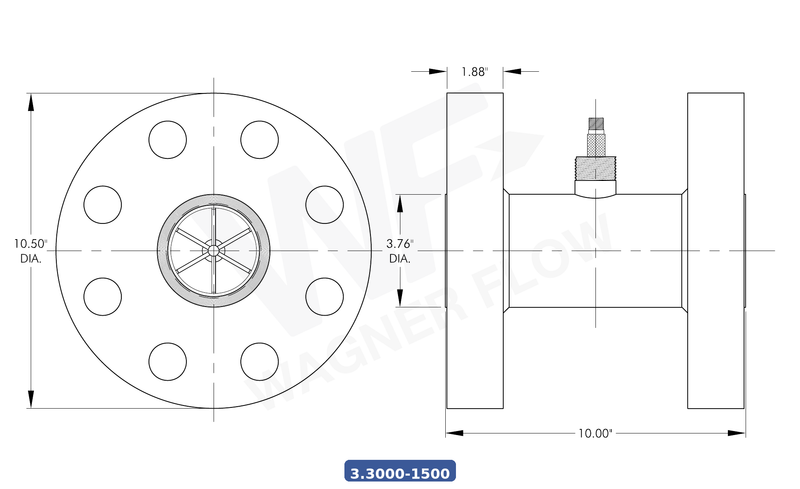

Flanged Meter
3-3000-1500CS
3" x 3" FLANGED METER W/ CLASS 1500 CARBON STEEL FLANGES
60-600 GPM
Flow Range
Class 150
Max Pressure
3"
Internal Size
Don't Forget!
Add a Magnetic Pickup
Required for all totalizer setups. The 4-303 is the recommended pickup for this meter.
View 4-303
$46.00
Specifications
60-600 GPM
Flow Range
Class 150
Max Pressure
±1%
Accuracy
±0.1%
Repeatability
3" NPT
Connection
316 SS
Body Material
Calibration Data
57
K-Factor (PPG)
570
Pulses per Sec
±0.1%
Linearity
-40°/250°F
Temp Range
Compatible Accessories
Applications
Oilfield Waterflood
Production Metering
Well Servicing
Pipeline Transfer
Mining Operations
Chemical Processing
Questions About This Meter?
Our team is ready to help with sizing, specifications, and custom requirements.
