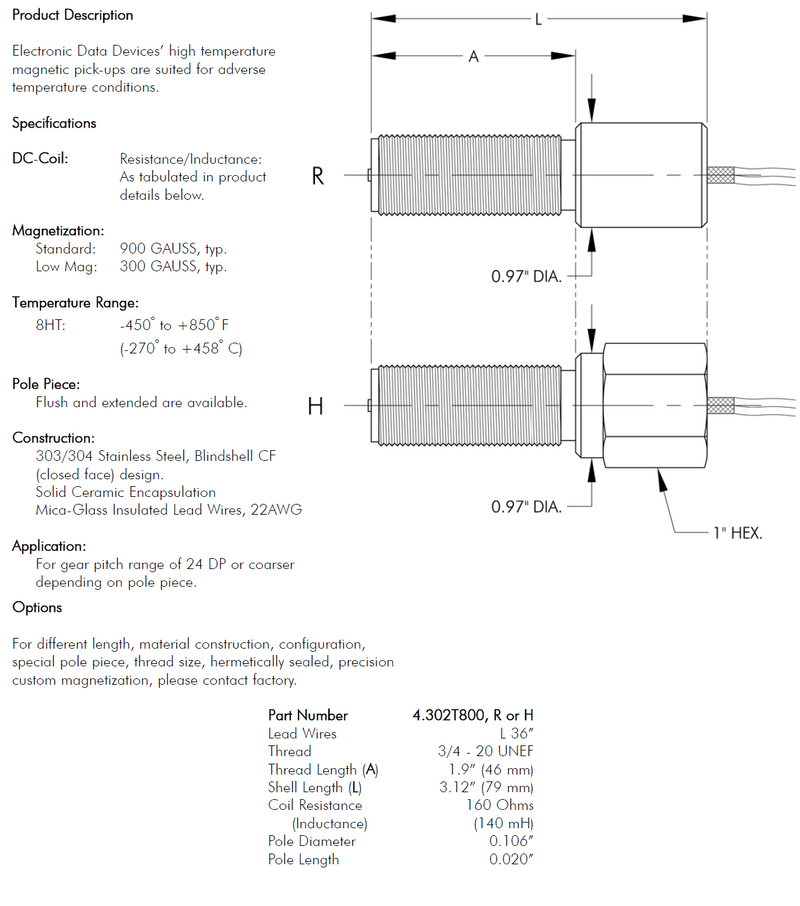

High Temperature Magnetic Pickup
4-302T800
Digital magnetic pickup for turbine flow meter signal output. High output voltage with solid epoxy encapsulation for reliable operation in demanding environments.
3/4-20 UNEF
Thread
-450 to +850F
Temp Range
Electrical Specifications
160 Ohms
DC Resistance
140 mH
Inductance
900 GAUSS
Magnetization
-450 to +850F
Temp Range
Physical Specifications
3/4-20 UNEF
Thread Size
0.75"
Thread Length
3.12"
Overall Length
Inconel 600, Ceramic
Construction
Wiring & Connection
KEY
B
A
A = +Voltage (Signal)
B = -Ground (Common)
Align mating connector key with notch
Mating Connector: MS3106A-10SL-4S
Pole Piece: Flush, 0.250" dia.
Encapsulation: Solid Epoxy
CE Compliance: EN55011, EN50022-2
Compatible Meters
This pickup is designed for use with Wagner Flow turbine meters and most other popular meter brands.
All Meter Sizes
