Passive Magnetic Pickup
4-304
Digital magnetic pickup for turbine flow meter signal output. High output voltage with solid epoxy encapsulation for reliable operation in demanding environments.
4 Vpp
Output
5/8-18 UNF
Thread
-100F to 250F (-73C to 120C)
Temp Range
Electrical Specifications
1500 Ohms
DC Resistance
800 mH
Inductance
4 Vpp
Output Voltage
950 Gauss
Magnetization
-100F to 250F (-73C to 120C)
Temp Range

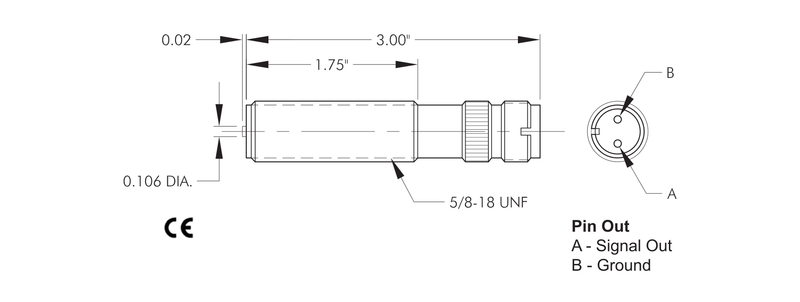

Physical Specifications
5/8-18 UNF
Thread Size
1.00 in
Thread Length
2.25 in
Overall Length
303/304 Stainless Steel, Solid Epoxy, Gold Plated Pins
Construction
Wiring & Connection
KEY
B
A
A = +Voltage (Signal)
B = -Ground (Common)
Align mating connector key with notch
Mating Connector: 7.2012
Pole Piece: Flush Pole
Encapsulation: Solid Epoxy
CE Compliance: EN55011, EN50022-2
Compatible Meters
This pickup is designed for use with Wagner Flow turbine meters and most other popular meter brands.
7/8" Internal Meters
1" Internal Meters
1-1/2" Internal Meters
2" Internal Meters
3" Internal Meters
4"+ Internal Meters
