Amplified Magnetic Pickup
4-5019SE
Digital magnetic pickup for turbine flow meter signal output. High output voltage with solid epoxy encapsulation for reliable operation in demanding environments.
0-10V, NPN
Output
5/8-18 UNF
Thread
-40F to 248F (-40C to 120C)
Temp Range
Electrical Specifications
7.5 to 30 Vdc regulated
Supply Voltage
4 mA @ 12 Vdc; 10 mA @ 24 Vdc
Supply Current
0-10V, NPN
Signal Output
12 mVpp
Input Sensitivity
3 Hz to 10 kHz
Frequency Range
0.04 / 0.16 us
Rise/Fall Time
900+ Gauss
Magnetization
-40F to 248F (-40C to 120C)
Temp Range
Physical Specifications
5/8-18 UNF
Thread Size
5.00 in
Thread Length
6.15 in
Overall Length
303 Stainless Steel
Construction

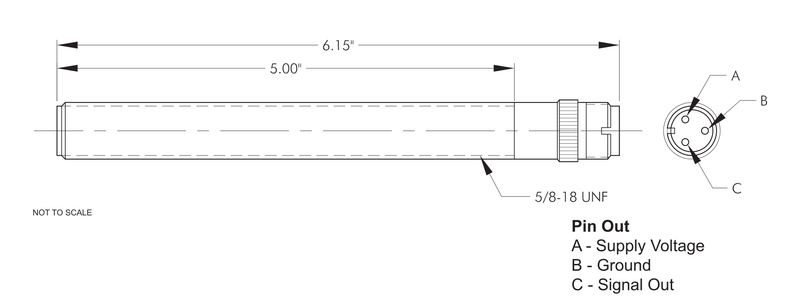

Wiring & Connection
KEY
A
C
B
A = Supply Voltage
B = Ground
C = Signal Out
Pin layout as viewed from connector face
Mating Connector: 7.2014
Pole Piece: Extended, 0.106" dia.
Encapsulation: Solid Epoxy
CE Compliance: EN55011, EN50022-2
Compatible Meters
This pickup is designed for use with Wagner Flow turbine meters and most other popular meter brands.
