Passive Magnetic Pickup
4-5050

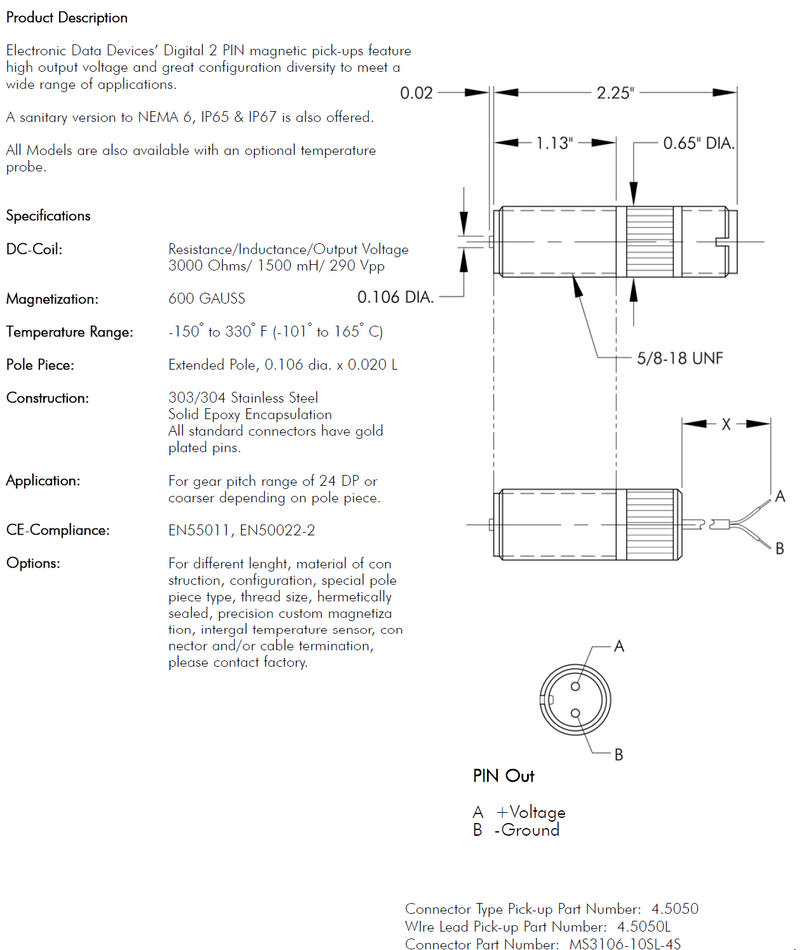

Digital magnetic pickup for turbine flow meter signal output. High output voltage with solid epoxy encapsulation for reliable operation in demanding environments.
4 Vpp
Output
5/8-18 UNF
Thread
-150F to 330F (-101C to 165C)
Temp Range
Electrical Specifications
3000 Ohms
DC Resistance
1500 mH
Inductance
4 Vpp
Output Voltage
600 Gauss
Magnetization
-150F to 330F (-101C to 165C)
Temp Range
Physical Specifications
5/8-18 UNF
Thread Size
1.00 in
Thread Length
2.25 in
Overall Length
303/304 Stainless Steel, Solid Epoxy, Gold Plated Pins
Construction
Wiring & Connection
KEY
B
A
A = +Voltage (Signal)
B = -Ground (Common)
Align mating connector key with notch
Mating Connector: 7.2012
Pole Piece: Extended Pole
Encapsulation: Solid Epoxy
CE Compliance: EN55011, EN50022-2
Compatible Meters
This pickup is designed for use with Wagner Flow turbine meters and most other popular meter brands.
3/8" Internal Meters
1/2" Internal Meters
3/4" Internal Meters
Need Help Selecting a Pickup?
Our team can help match the right magnetic pickup to your meter and application.
